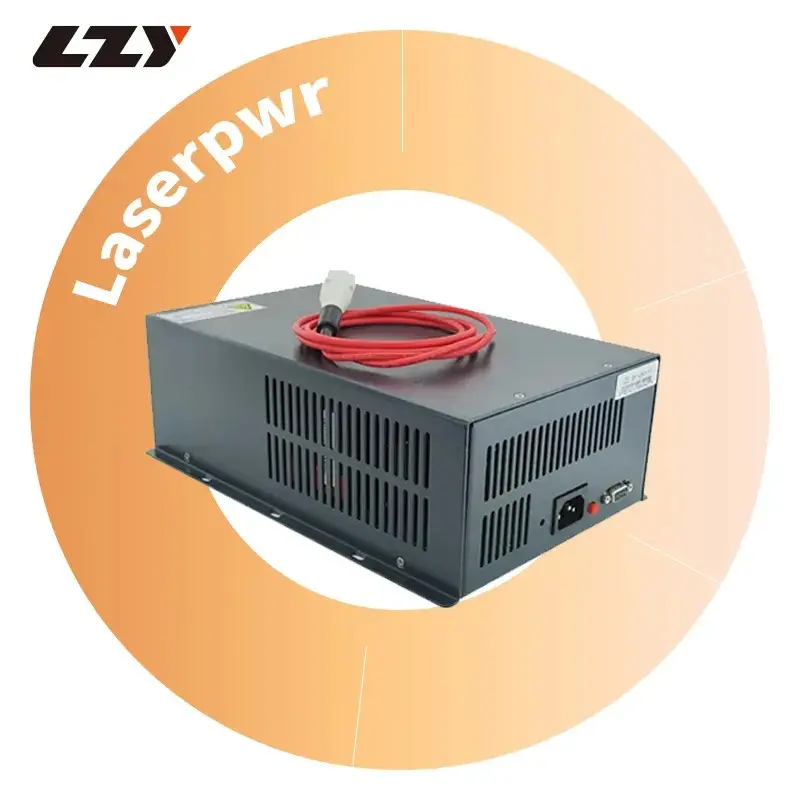

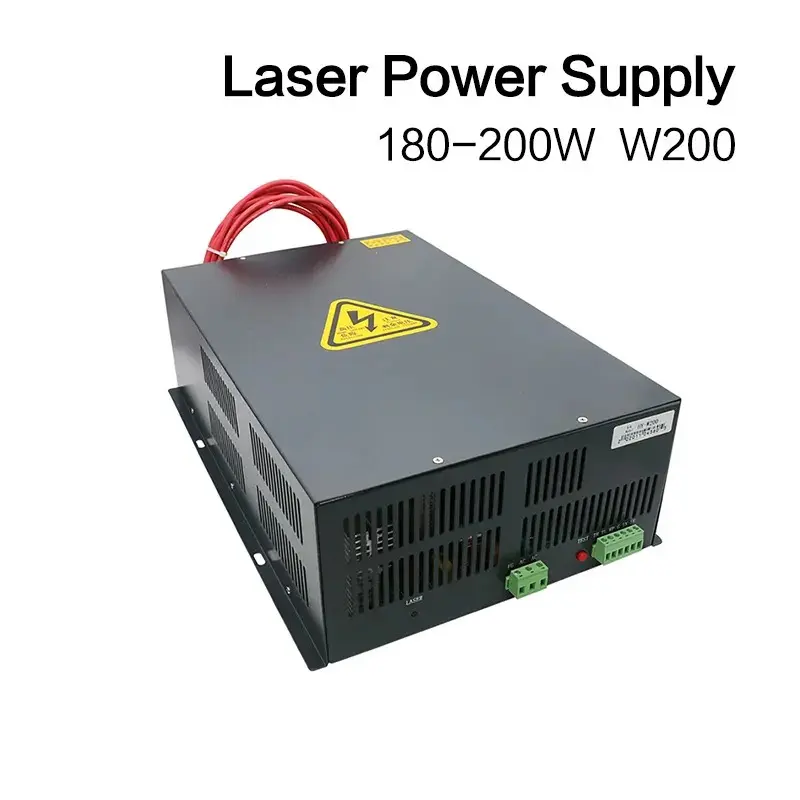

Joylaser HY-WA200 200w Laser Lamps for Laser Power Supply Factory Direct Sale Accessories
-
01
An external display screen can be connected via network cable. The display screen has digital display of current size, light indication signal, water protection signal, and can indicate whether the signal is normal or faulty. The integrated potentiometer can manually adjust the current.
The installation dimensions of the LCD screen and the pointer ammeter are consistent, making a perfect replacement.
-
02
Good compatibility: It can be perfectly matched with 80W-300W CO2 lasers.
Universal for cutting and engraving: Fast cutting speed and sufficient power; The engraving response speed is fast and the bottom surface is flat.
-
02

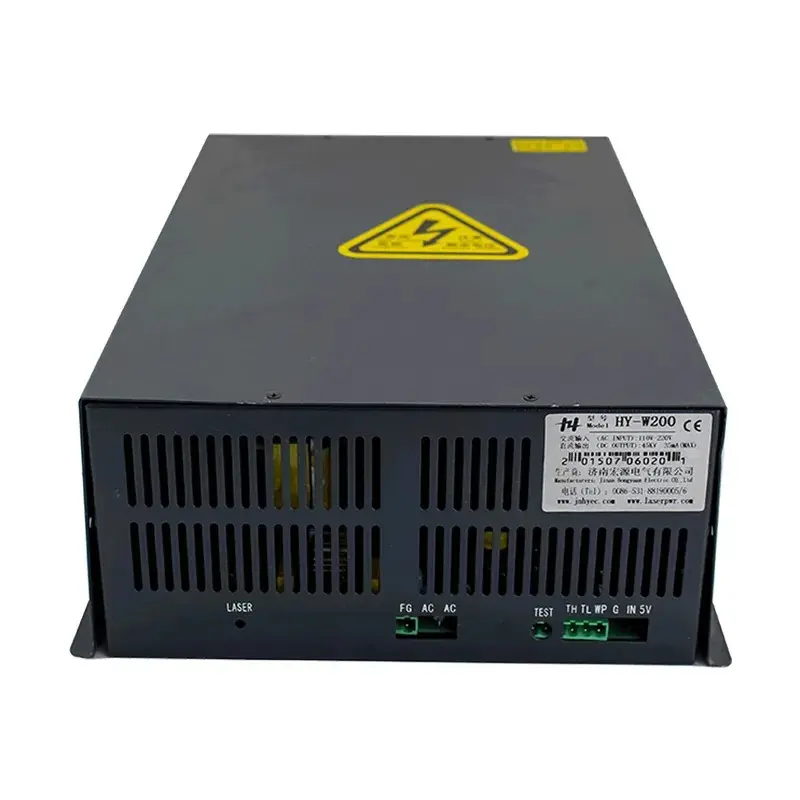

The power supply itself is equipped with a manual light output test function, which is convenient for maintenance.
It comes with a status indicator light, making it easier to determine the status.
Application fields
High-power laser cutting machines, laser engraving machines, laser marking machines, leather cutting machines, garment cutting machines, shoe pattern cutting machines, advertising engraving machines, leather engraving machines, glass engraving machines, laser bag opening machines, laser drilling machines, etc.
Product parameters
| Model |
HY-W/WA200 |
| Input Voltage |
AC220V(110V can be customized) |
| Frequency |
47- 440HZ |
| Max Input Power |
1200W |
| Max Input Current |
10A |
| Max Output Voltage |
DC 60KV |
| Max Output Current |
DC35mA |
| Efficiency |
≥90%（full load) |
| MTBF | ≥10000 hours |
| Response Time | ≤1ms（The time from the given switch signal to the moment when the output current rises to 90% of the set current） |
| Withstand Voltage | Input - Output, Input - Shell: AC1500V 10MA for 60 seconds; The negative terminal of the output is connected to the shell. |
| Operation Environment | Working temperature (-10~40)°℃，Relative humidity :<90% |

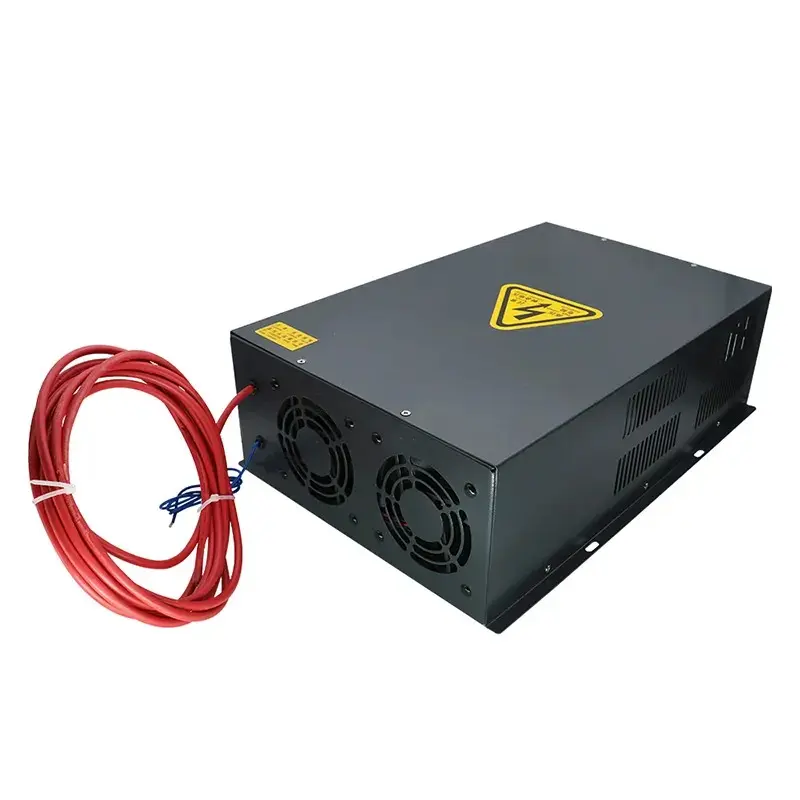

| Cooling Method | forced air cooling |
| Matching laser tube power |
180-200W |

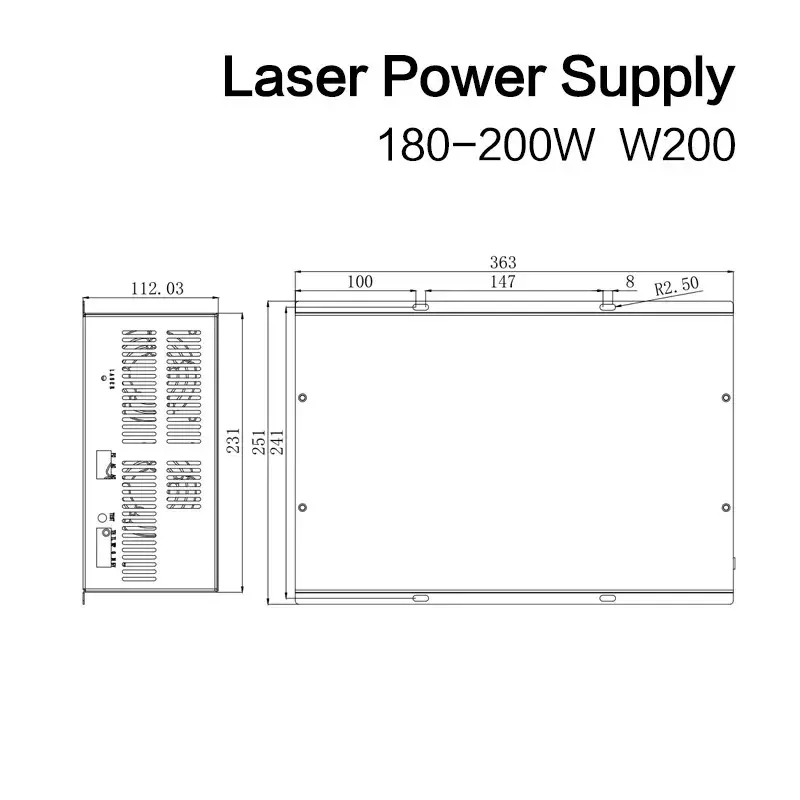

| Overall Dimension(L*W*H) |
363*251*112 |
| Weight (KG) |
5.65 |
|
Color |
BLACK |
|
Input |
Input Voltage |
AC90-250V |
|
AC Frequency |
47-440HZ |
|
|
Max Input Power |
1200W |
|
|
Max Input Current |
10A |
|
|
Output |
Max Output Voltage |
DC 60KV |
|
Max Output Current |
DC 35mA |
|
|
Enviroment |
Working Temperature |
-10~+40℃ |
|
Relative Humidity |
≤90% |
|
|
Response Speed |
≤1mS |
|
|
Efficiency |
≥90%(Ful Load) |
|
|
MTBF |
≥10000 Hours |
|
|
Cooling |
Forced Air Cooling |
|
|
Dimension |
L*W*H=363*251*112(mm) |
|
|
Weight |
5.65kg |
|
