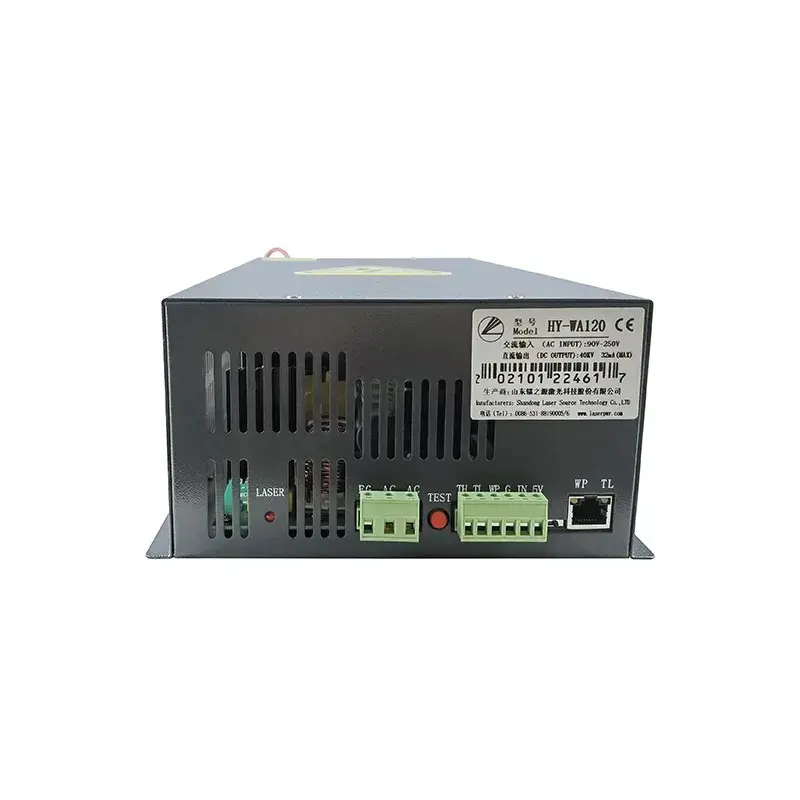

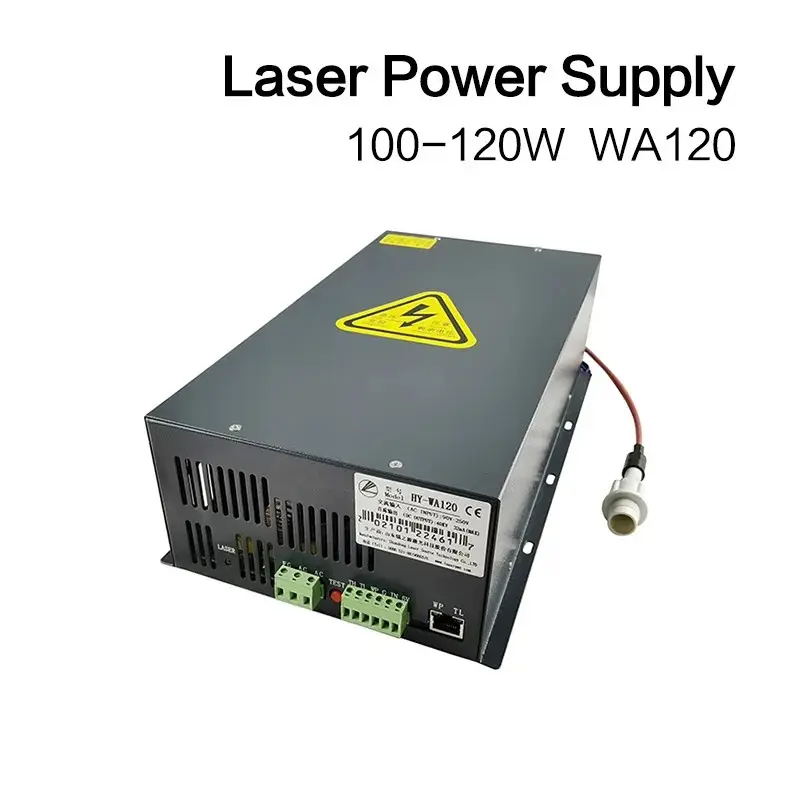

JOYLASER HY-W120 Factory Direct Price Black 120W Co2 Laser Tube Power Supply for Cutting Machine
-
01
Network-connectable external display screen with digital current monitoring, visual status indicators (including water protection alerts), and fault diagnostics. Integrated potentiometer enables manual current adjustment.
-
02
Designed with identical dimensions to standard LCD screens and analog ammeters for seamless retrofitting.
Broad Compatibility: Seamlessly integrates with CO2 lasers ranging from 80W to 300W.
-
03
Dual-Mode Versatility: Delivers rapid cutting speeds with sustained power output for industrial applications, coupled with swift engraving responsiveness and precision surface finishing.
Built-in manual light output test function simplifies maintenance procedures.
Status indicator lights provide instant operational feedback.
Application fields
Suitable for high-power laser systems including: Cutting/engraving machines (metal, leather, textiles, glass, advertising materials) Precision marking systems Bag perforation devices Drilling equipment Footwear pattern cutters Industrial material processing systems
Product parameters
| Model |
HY-W/WA120 |
| Input Voltage | AC220V(110V can be customized) |
| Frequency | 47- 440HZ |
| Max Input Power |
650W |
| Max Input Current |
6A |
| Max Output Voltage |
DC 40KV |
| Max Output Current |
DC32mA |
| Efficiency | ≥90%（full load) |
| MTBF | ≥10000 hours |
| Response Time | ≤1ms（The time from the given switch signal to the moment when the output current rises to 90% of the set current） |
| Withstand Voltage | Input - Output, Input - Shell: AC1500V 10MA for 60 seconds; The negative terminal of the output is connected to the shell. |
| Operation Environment | Working temperature (-10~40)°℃，Relative humidity :<90% |

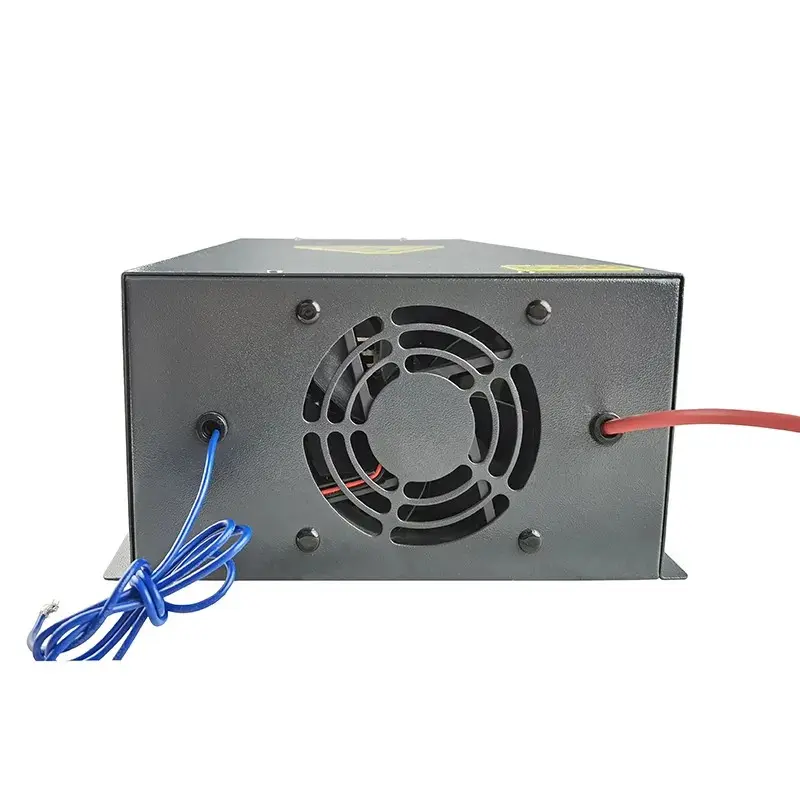

| Cooling Method | forced air cooling |
| Matching laser tube power |
100-120W |

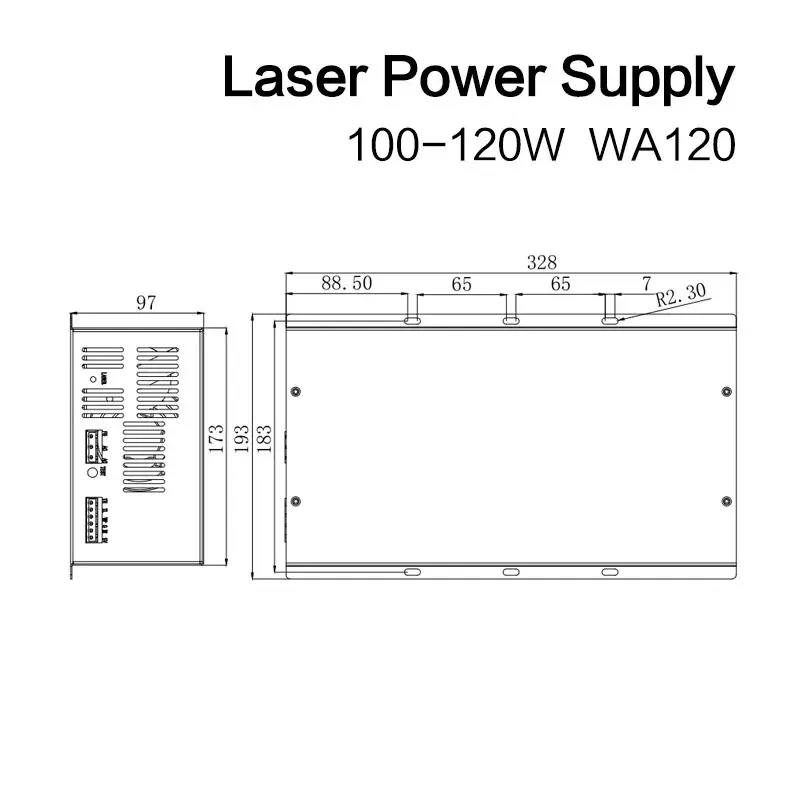

| Overall Dimension(L*W*H) |
328*193*97 |
| Weight (KG) |
3.7 |
| Color | BLACK |
|
Input |
Input Voltage | AC90-250V |
| AC Frequency | 47-440HZ | |
| Max Input Power | 650W | |
| Max Input Current | 6A | |
|
Output |
Max Output Voltage | DC40KV |
| Max Output Current | DC 32mA | |
|
Enviroment |
Working Temperature | -10~+40℃ |
| Relative Humidity | ≤90% | |
| Response Speed | ≤1mS | |
| Efficiency | ≥90%(Ful Load) | |
| MTBF | ≥10000 Hours | |
| Cooling | Forced Air Cooling | |
| Dimension | L*W*H=328*193*97(mm) | |
| Weight | 3.7kg | |
