Joylaser HY-TA150BL Series High-Quality Laser Power Supply for Diverse Materials
-
01
The TA series can be externally connected to a digital display screen via network cable, which can show the current size, light output indication signal, water protection signal, and integrates a potentiometer and manual current adjustment.
The installation dimensions of the LCD screen and the pointer ammeter are consistent, making a perfect replacement.
-
02
The power supply itself is equipped with a manual light output test function, which is convenient for on-site maintenance by customers.

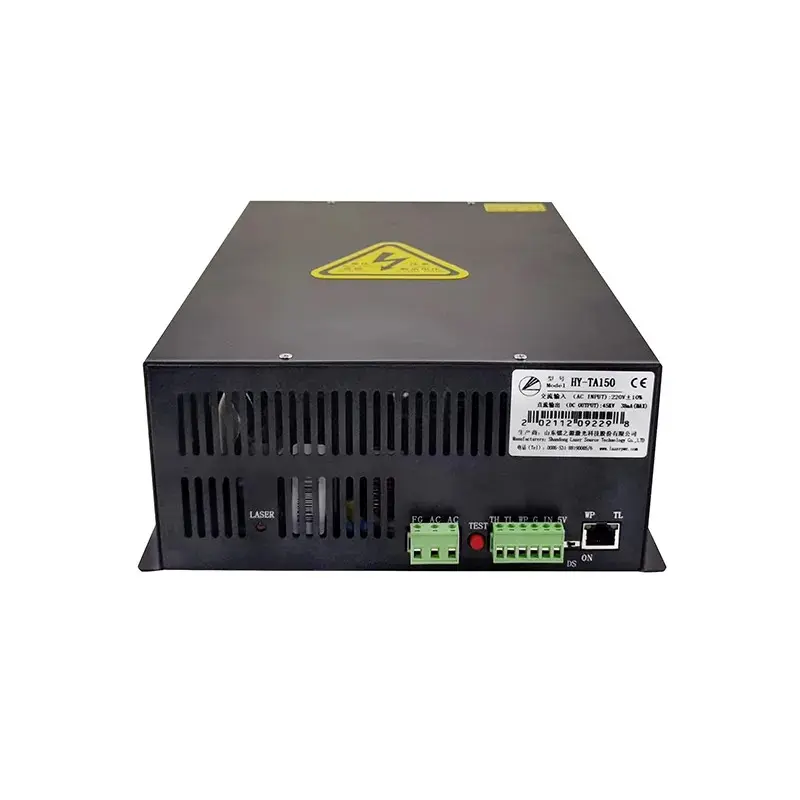

It is equipped with power-on, laser output, TL and WP status indicator lights.
Application fields
Laser engraving machines, laser cutting machines, laser marking machines, die-cutting machines, laser drilling machines and other non-metallic processing equipment.
Product parameters
| Model |
HY-TA150- BL |
| Input Voltage | AC220V(110V can be customized) |
| Frequency | 47- 440HZ |
| Max Input Power | 750W |
| Max Input Current | 3.5A |
| Max Output Voltage |
DC50KV |
| Max Output Current |
DC42mA |
| Efficiency | ≥90%（full load) |
| MTBF | ≥10000 hours |
| Response Time | ≤1ms（The time from the given switch signal to the moment when the output current rises to 90% of the set current） |
| Withstand Voltage | Input - Output, Input - Shell: AC1500V 10MA for 60 seconds; The negative terminal of the output is connected to the shell. |
| Operation Environment | Working temperature (-10~40)°℃，Relative humidity :<90% |
| Cooling Method | forced air cooling |
| Matching laser tube power | 100-150W |

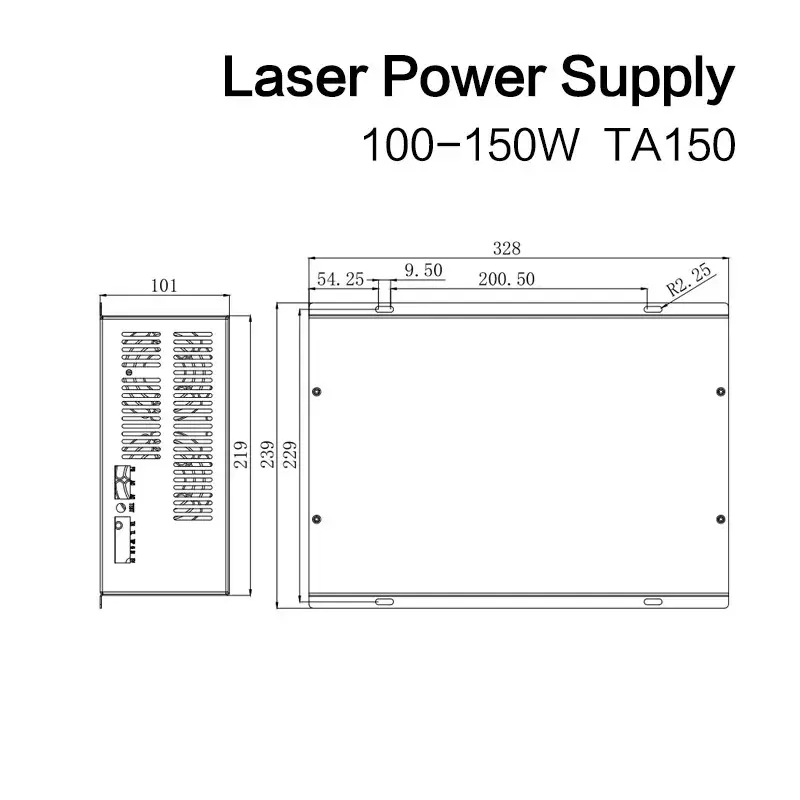

| Overall Dimension(L*W*H) | 328*239*101 |
| Weight (KG) | 4.6 |
| Color | BLACK |
|
Input |
Input Voltage | AC220V(110V can be customized ) |
| AC Frequency | 47-440Hz | |
| Max Input Power | 750W | |
| Max Input Current | 3.5A | |
|
Output |
Max Output Voltage | DC 48KV |
| Max Output Current | DC 38mA | |
|
Enviroment |
Working Temperature | -10~+40℃ |
| Relative Humidity | ≤90% | |
| Response Speed | ≤1mS | |
| Efficiency | ≥90%(Full Load) | |
| MTBF | ≥10000 Hours | |
| Cooling | Forced Air Cooling | |
| Dimension | L*W*H=328*239*101(mm) | |
| Weight | 4.6kg |
