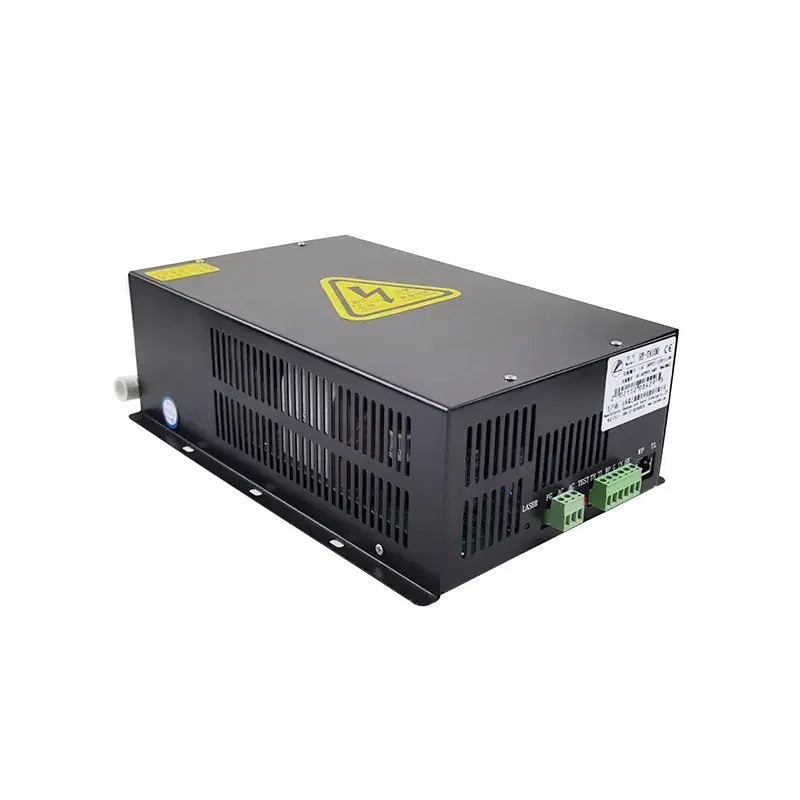

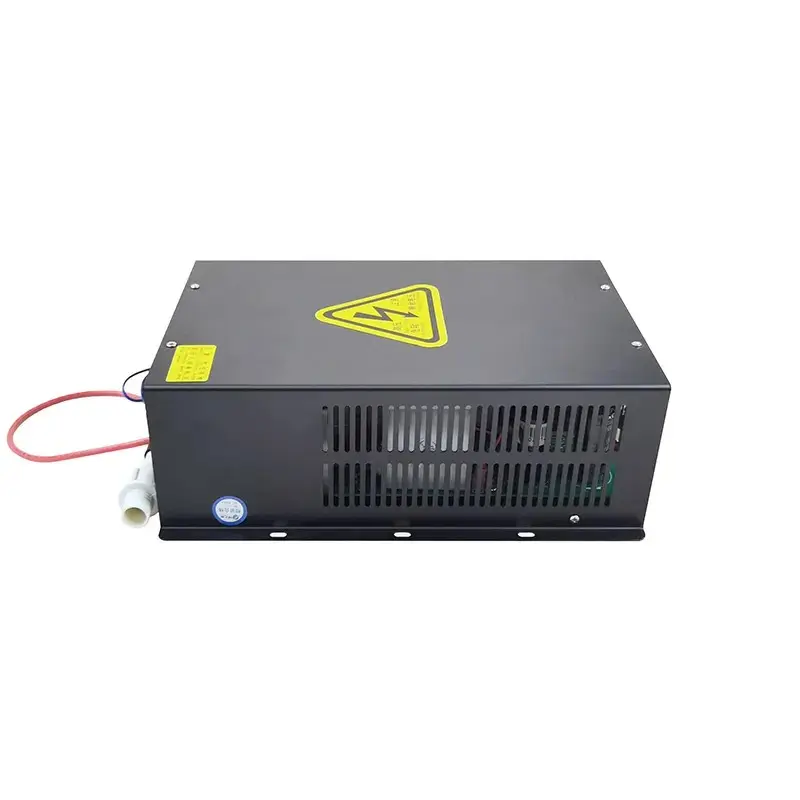

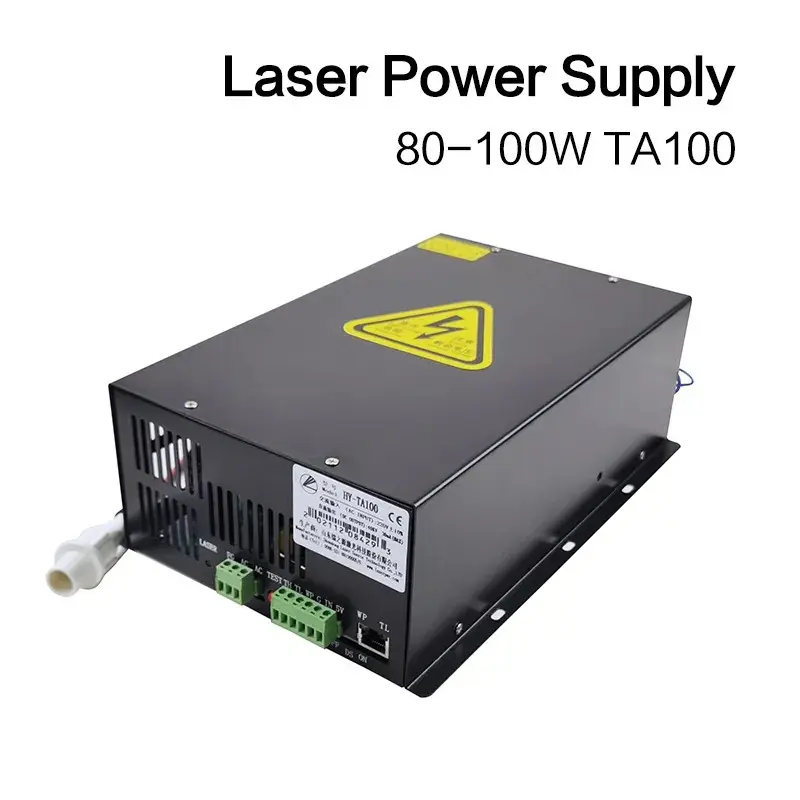

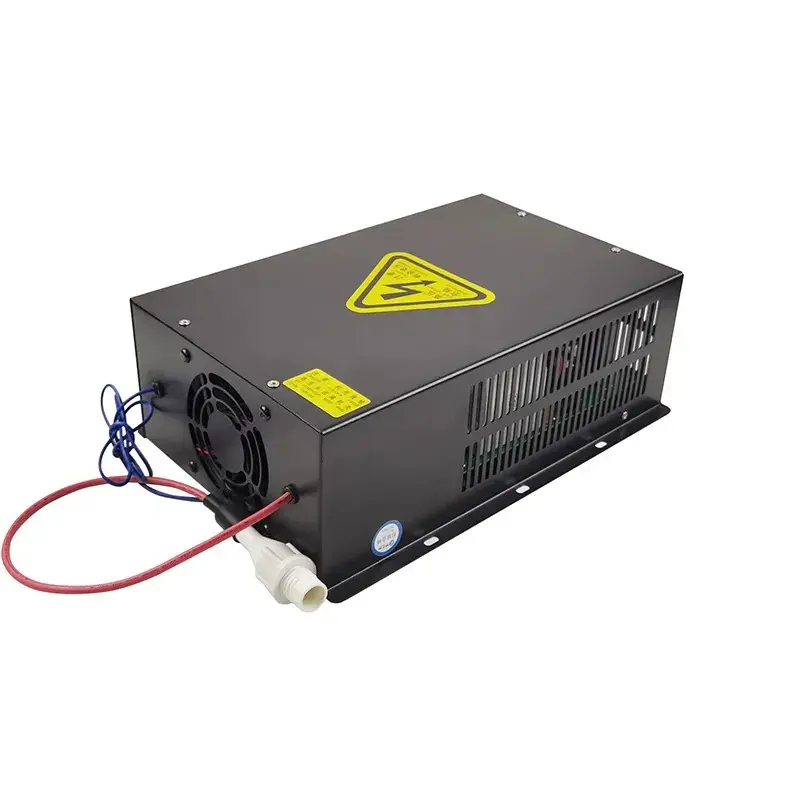

Joylaser CO2 Laser Power Supply HY-T100 100w Common for Laser Engraving Cutting Machine
-
01
The TA series can be externally connected to a digital display screen via network cable, which can show the current size, light output indication signal, water protection signal, and integrates a potentiometer and manual current adjustment.
The installation dimensions of the LCD screen and the pointer ammeter are consistent, making a perfect replacement.
-
02
The power supply itself is equipped with a manual light output test function, which is convenient for on-site maintenance by customers.
It is equipped with power-on, laser output, TL and WP status indicator lights.
Application fields
Laser engraving machines, laser cutting machines, laser marking machines, die-cutting machines, laser drilling machines and other non-metallic processing equipment.
Product parameters
| Model |
HY-TA100 |
| Input Voltage | AC220V(110V can be customized) |
| Frequency | 47- 440HZ |
| Max Input Power |
600W |
| Max Input Current |
2.7A |
| Max Output Voltage |
DC 40KV |
| Max Output Current |
DC32mA |
| Efficiency | ≥90%（full load) |
| MTBF | ≥10000 hours |
| Response Time | ≤1ms（The time from the given switch signal to the moment when the output current rises to 90% of the set current） |
| Withstand Voltage | Input - Output, Input - Shell: AC1500V 10MA for 60 seconds; The negative terminal of the output is connected to the shell. |
| Operation Environment | Working temperature (-10~40)°℃，Relative humidity :<90% |
| Cooling Method | forced air cooling |
| Matching laser tube power |
80-100W |

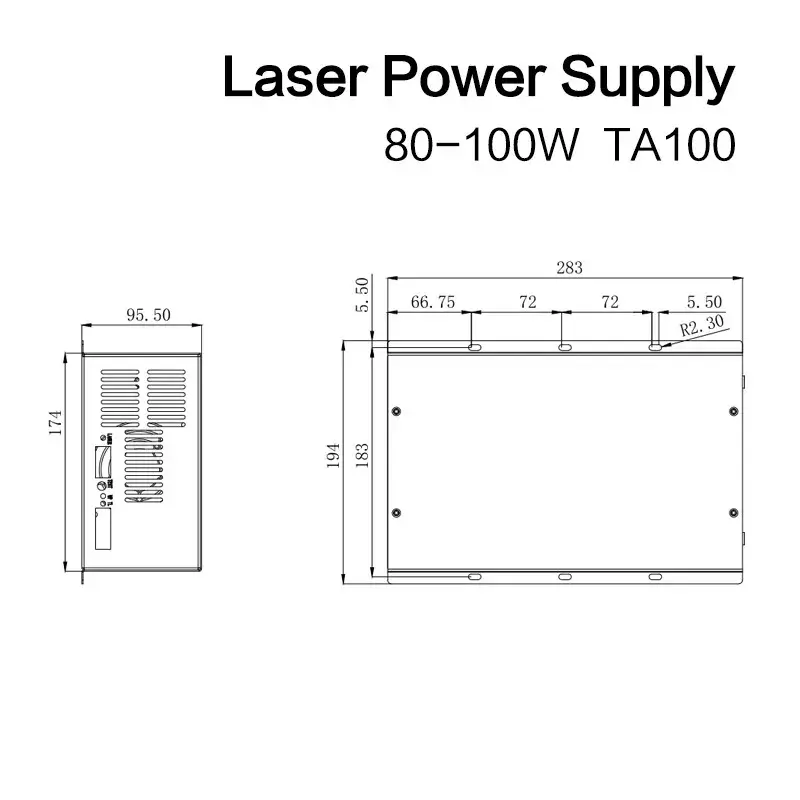

| Overall Dimension(L*W*H) |
283*196*96 |
| Weight (KG) |
2.95 |
| Color | BLACK |
|
Input |
Input Voltage | AC220V(110V can be customized ) |
| AC Frequency | 47-440Hz | |
| Max Input Power | 6000W | |
| Max Input Current | 2.7A | |
|
Output |
Max Output Voltage | DC 40KV |
| Max Output Current | DC 32mA | |
|
Enviroment |
Working Temperature | -10~+40℃ |
| Relative Humidity | ≤90% | |
| Response Speed | ≤1mS | |
| Efficiency | ≥90%(Full Load) | |
| MTBF | ≥10000 Hours | |
| Cooling | Forced Air Cooling | |
| Dimension | L*W*H=283*196*96(mm) | |
| Weight | 2.95kg |
FAQ
Q: When Will Your Company Deliver The Items After Payment?
A: We Will Deliver The Items Within 7 Days.
Q: How Do You Pack The Items?
A: We Will Make Solid Wooden Box To Pack Some Fragile Items Such As Laser Tubes,And Carton Is Suitable For Other Items.
Q: What Should I Do If My Items Has Been Damaged During The Shipment?
A: If The Items Has Been Damaged During The Shipment,We Will Resend New Items To You With Free Of Charge Or Make Full Refund.
Q: What certifications do you have?
A: We have patent certificates, CE certificates, ios9001 quality system certification and other certificates
Q: What services can we provide?
Accepted delivery terms. FOB, CIF, EXW;
Accepted payment currency. USD, RMB.
Accepted payment methods. T/T, Credit Card, L/C, Cash;
Language English, Chinese
Q: Can I visit your factory?
Warmly welcome you to visit our factory!
