Industrial Cooling Laser Recirculating Water Cooled Chiller for CO2 Laser

Industrial Cooling Laser Recirculating Water Cooled Chiller for CO2 Laser

Water-Cooled Chiller is an essential component in industrial and commercial HVAC systems used to provide cooling for various applications, such as air conditioning, manufacturing processes, and refrigeration. It operates by removing heat from a liquid, typically water, and transferring it to a water source like a cooling tower, where it is then dissipated into the environment.

    Product Details

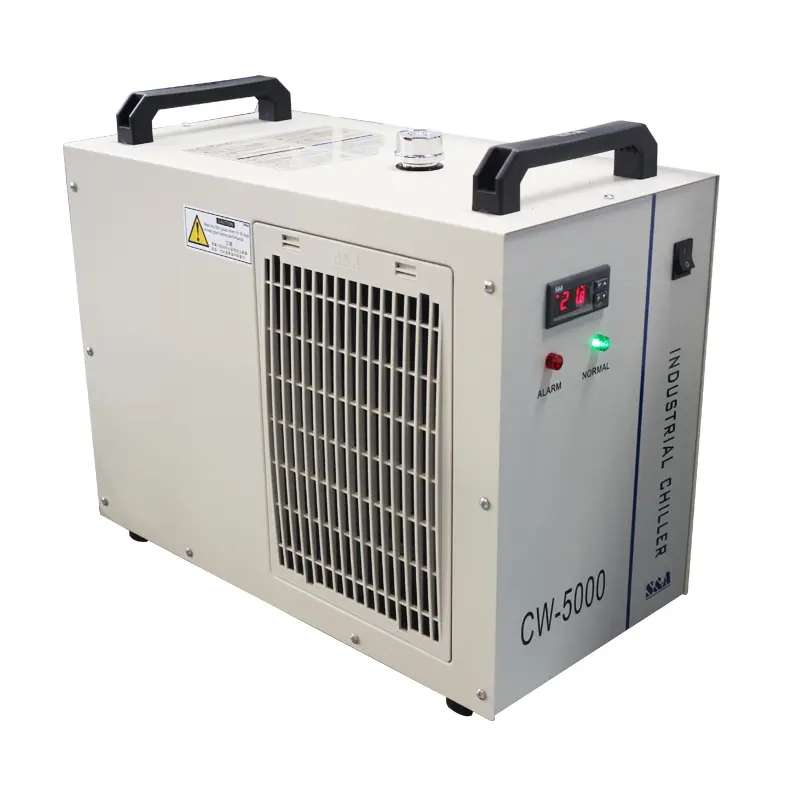

    • Industrial Cooling Laser Recirculating Water Cooled Chill

      High Efficiency and Energy Savings

      Water-cooled chillers are known for their superior energy efficiency compared to air-cooled systems. By utilizing water, which has a higher heat transfer capacity than air, they can dissipate heat more effectively, leading to lower energy consumption and operating costs in large-scale cooling applications.

      01
    • Industrial Cooling Laser Recirculating Water Cooled Chill

      Better Heat Dissipation

      Water has a higher thermal conductivity than air, which allows water-cooled chillers to achieve more effective heat exchange. This results in better overall cooling performance, particularly in environments that require constant or large amounts of cooling, such as industrial processes and commercial buildings.

      02

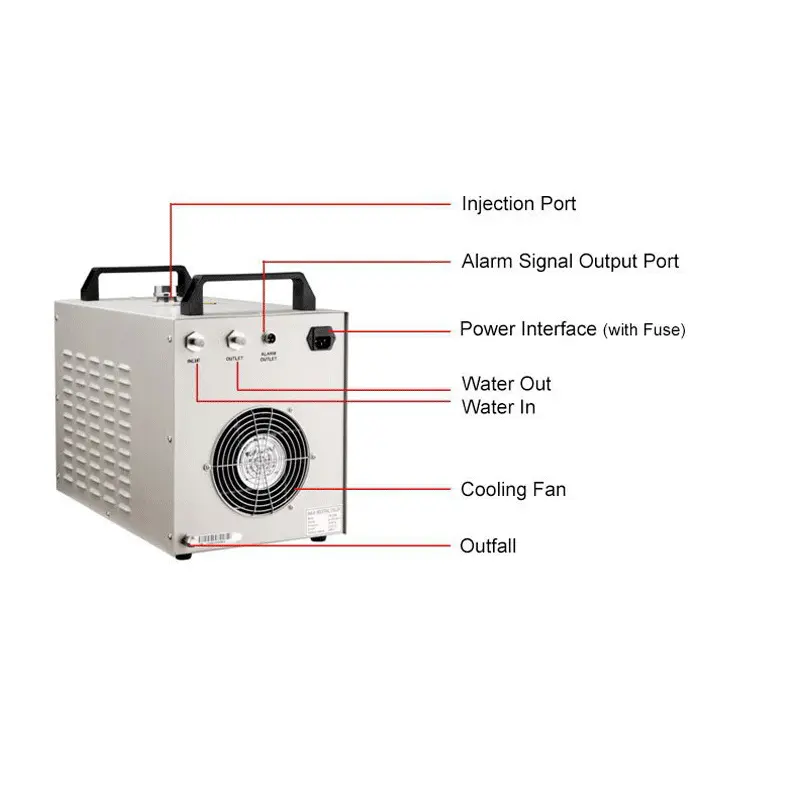

    • Industrial Cooling Laser Recirculating Water Cooled Chiller (3)

      Stable Temperature Control

      Water chillers provide more precise and stable temperature control, making them ideal for sensitive applications like pharmaceuticals, data centers, and laboratories, where consistent temperatures are crucial for optimal performance and safety.

      03
    • Industrial Cooling Laser Recirculating Water Cooled Chiller

      Stable Temperature Control

      Compared to air-cooled chillers, water-cooled chillers typically have a more compact design, making them ideal for spaces where room for large equipment is limited. The system’s reliance on water rather than air means it requires less space for heat exchange surfaces.

      04
    • Longer Lifespan and Reliability

      Water-cooled chillers tend to have a longer operational lifespan when properly maintained. Since water is a more efficient medium for heat transfer, the system experiences less wear and tear, leading to enhanced reliability and reduced maintenance requirements.

      05
    Model CW3000 CW5200 CW5300 CW-6000
    Voltage AC 1P 110V AC 1P 110V AC 1P 110V AC 1P 220V
    Frequency 50/60Hz 60Hz 60Hz 50
    Current 0.4~0.9A 0.4~5.3A 0.5~8.9A 0.5~7.2A
    Machine power 0.1KW 0.43KW 0.77kW 0.98kW
    Compressor power / 0.38kW 0.66kW 1.06kW
    Nominal cooling capacity / 1.03kw 1.67kw 3.14kw
    Pump power / 0.03kw 0.05kw 0.05kW
    Max. lift 10m 10m 12m 12m
    Max.flow 10L/min 10L/min 13L/min 13L/min
    N.W. 8.7kgs 21.5kgs 22.7kgs 53kgs
    G.W. 11kgs 24.5kgs 25.7kgs 63kgs
    Precision / ±0.3℃ ±0.3℃ ±0.5℃
    Tank capacity 9L 6L 6L 15L
    Inlet and outlet OD 10mm barbed connector Rp1/2"
    Dimension 49 X 27 X 38cm 58 X 29 X 47cm 67 X 47 X 89cm (L X W X H)
    Package Dimension 59 X 38 X 47cm 65 X 39X 56cm 74 X 61 X 103cm
    Suitable laser tube power ≤80W 80W-120W 120W-130W Above 130W
    The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
