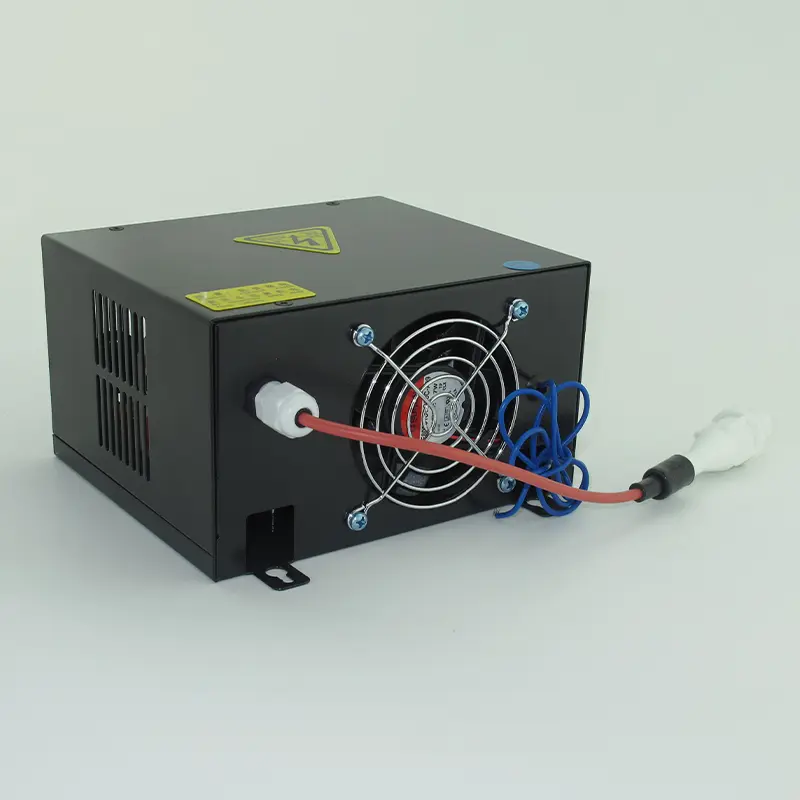

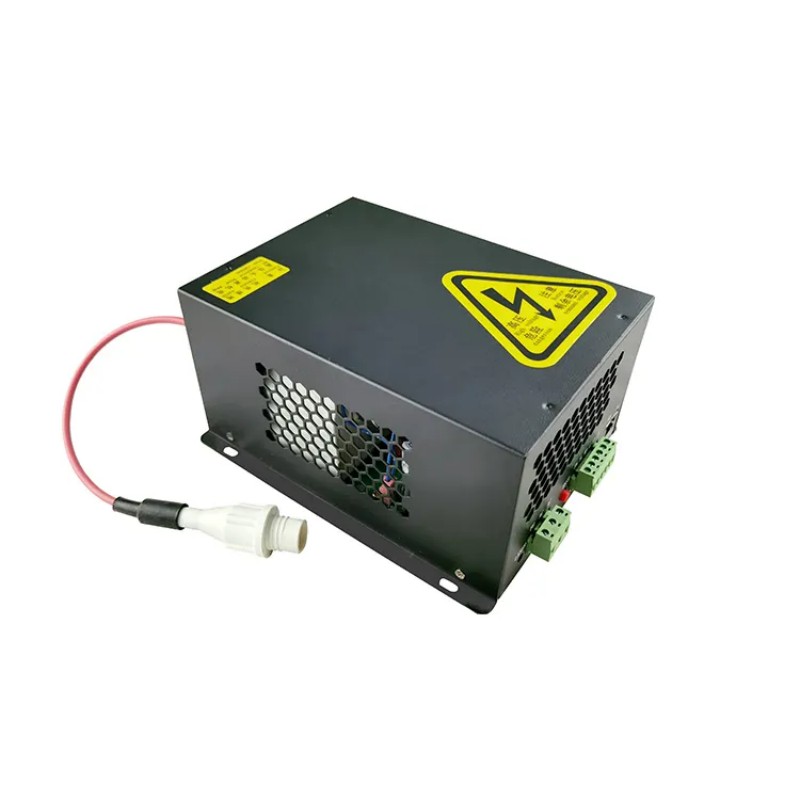

Facototy Price HY-X60 110V/220V Cutting Machine 75W Co2 Laser Tube Power Supply
-
01

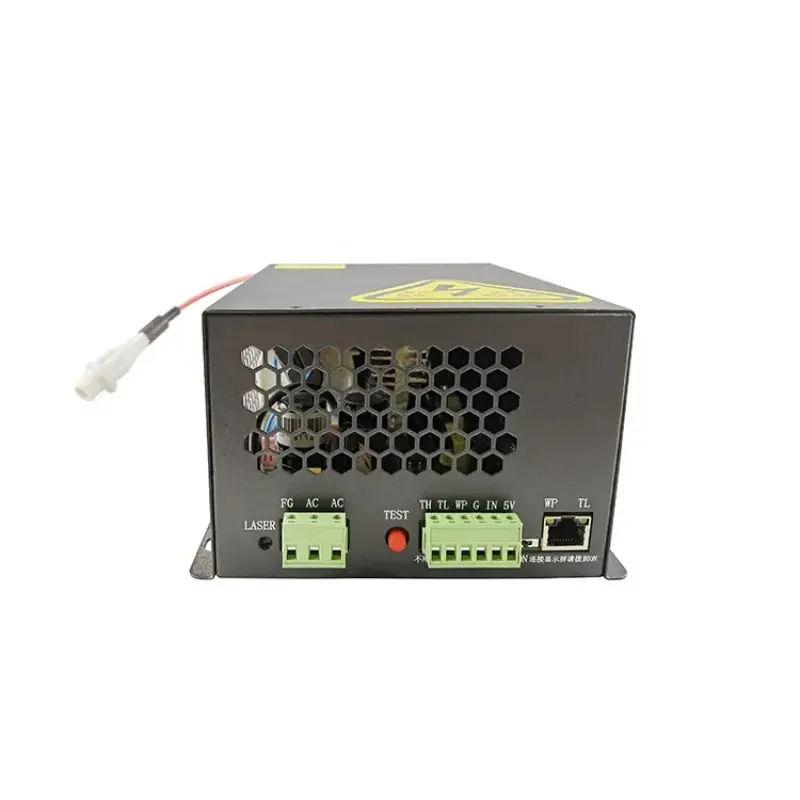

The digital display screen can show the current size, light output indication signal, water protection signal, and integrates potentiometer and manual current adjustment and test buttons.
The installation dimensions of the LCD screen and the pointer ammeter are consistent, making a perfect replacement.
-
02
The X series is connected to an external display via standard network cables, while the XA series comes with a built-in LCD display. It features an exclusive and proprietary fault detection function, allowing customers to quickly identify laser tube or power supply faults with just one click on-site without the need for any instruments, greatly facilitating self-inspection and repair by users.
Application fields
Leather cutting machines, garment cutting machines, shoe pattern cutting machines, advertising engraving machines, leather engraving machines, glass engraving machines, laser bag opening machines, laser drilling machines, laser marking machines, etc.
Product parameters
| Model | HY-X60/XA60 |
| Input Voltage | AC220V(110V can be customized) |
| Frequency | 47- 440HZ |
| Max Input Power | 300W |
| Max Input Current | 1.5A |
| Max Output Voltage | DC 25KV |
| Max Output Current | DC 22mA |
| Efficiency | ≥90%（full load) |
| MTBF | ≥10000 hours |
| Response Time | ≤1ms（The time from the given switch signal to the moment when the output current rises to 90% of the set current） |
| Withstand Voltage | Input - Output, Input - Shell: AC1500V 10MA for 60 seconds; The negative terminal of the output is connected to the shell. |
| Operation Environment | Working temperature (-10~40)°℃，Relative humidity :<90% |
| Cooling Method | forced air cooling |
| Matching laser tube power | 50-60W |
| Overall Dimension(L*W*H) | 194*158*90 |
| Weight (KG) | 1.7 |
| Color | BLACK |
